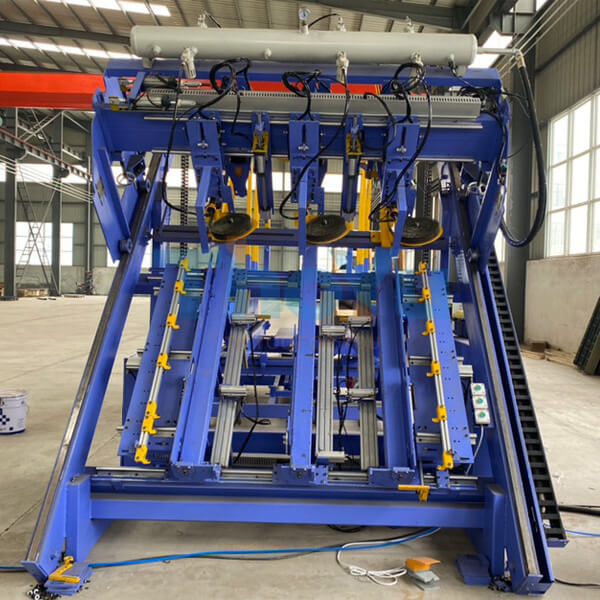

European pallet nailing machine adopts a fully automatic program, and the operating system adopts imported PLC control, the touch screen is simple to operate, with convenient control, and accurate nailing position. Compared with the domestic conventional production process, auto pallet nailing machine is with multiple processes are completed at one time, which greatly improves the work efficiency.
Suitable for wood block pallet size: 800*1200 mm, 1200*1000 mm, 1000*1200 mm, 800*600 mm, 600*400 mm and so on.

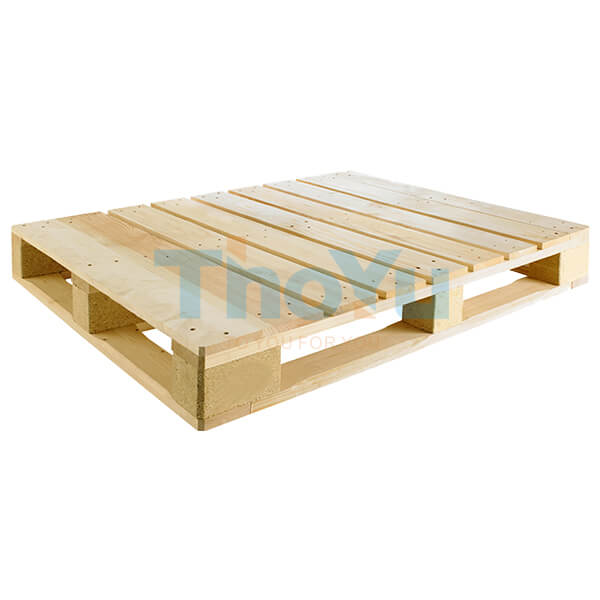

Pallet type: European pallets, non-standard European pallet, custom-made pallets
Tolerance: +/-3 mm
Foot & roof board thickness: 10-25 mm
Easy adjustable pallet size
High efficiency
Worker-friendly
Gain more profit
Easy operation

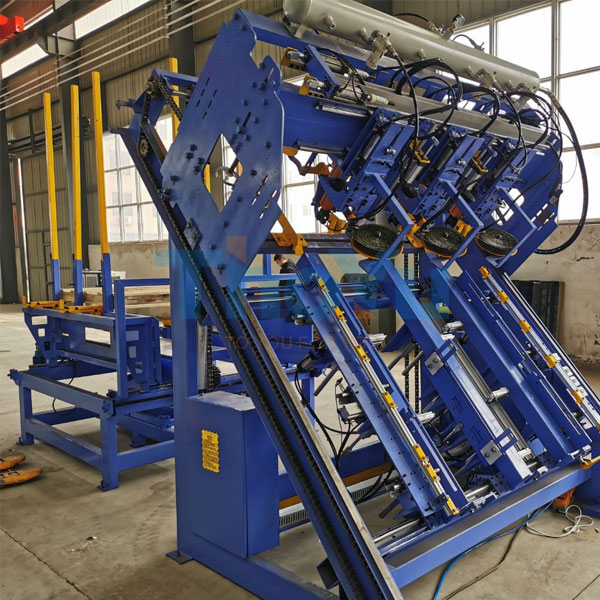

Euro block pallet nailing machine with fully automatic stacking adopts a full automatic system, PLC control, simple touch screen operation, accurate pinning position with high efficiency.
European wooden pallet nailing machine adopts servo motor, original numerical control system, and precision servo reducer. European wooden pallet nailing machine runs with high precision and small error, and can work continuously for ten thousand meters without error, which ensures the high consistency of working dimension.
European wooden pallet nailing machine will auto clamping after the worker put the wood pallet bottom bean in the machine, then put wood pallet plate, after automatic nailing. When complete it, the work needs to flip the other side, put the plate in, then nailing it.

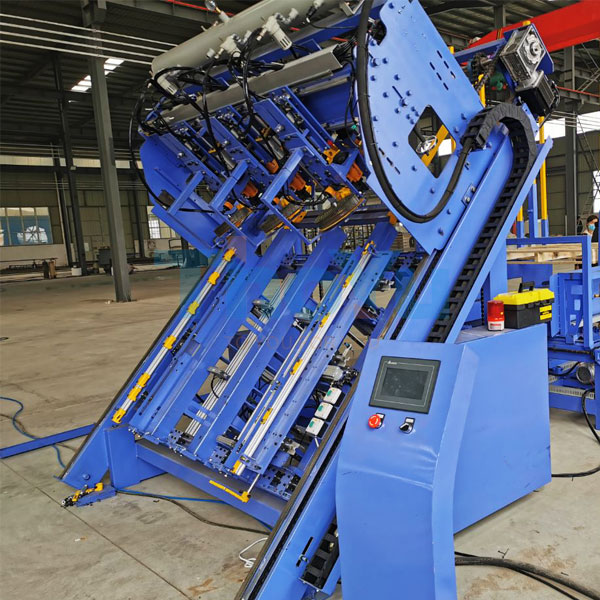

European wooden pallet nailing machine is with touch screen control, advanced programming, feeding mechanism, and nailing machine multi-axis linkage at the same time when working. European wooden pallet nailing machine achieves fast and efficient nailing work. One more thing, it could switch different program basis on different material plates to produce non-standard pallets.
Model | TYMD-1300 |
Productivity | 1-2 pallets/minute |
Motor power | 1.5 kW servo motor |
Function | Making wood pallet |
Air pressure | 0.8 MPa |
Voltage | 380 V, three-phase |
Working mode | Artificial feeding/Auto nailing/Auto stacking |
Operating mode | Touch screen control |
Operational mode | Pneumatic operation |
Nail gun speed | 7 time/second |
Nail apply | Less than 80 mm |
Application | Wood pallet production line |
Applicable industries | Manufacturing plant |
